Shock w/ Misalignment Spacer Install Tool

Ship Physical Product / 1/2" / 1.5"

$6.97 USD

$6.97 USD

Product Type Ship Physical Product Print Yourself - Digital Download

Bolt Size 1/2" 5/8"

Shock Mounting Width 1.5"

This simple tool helps users install shocks with misalignment spacers into mounting brackets.

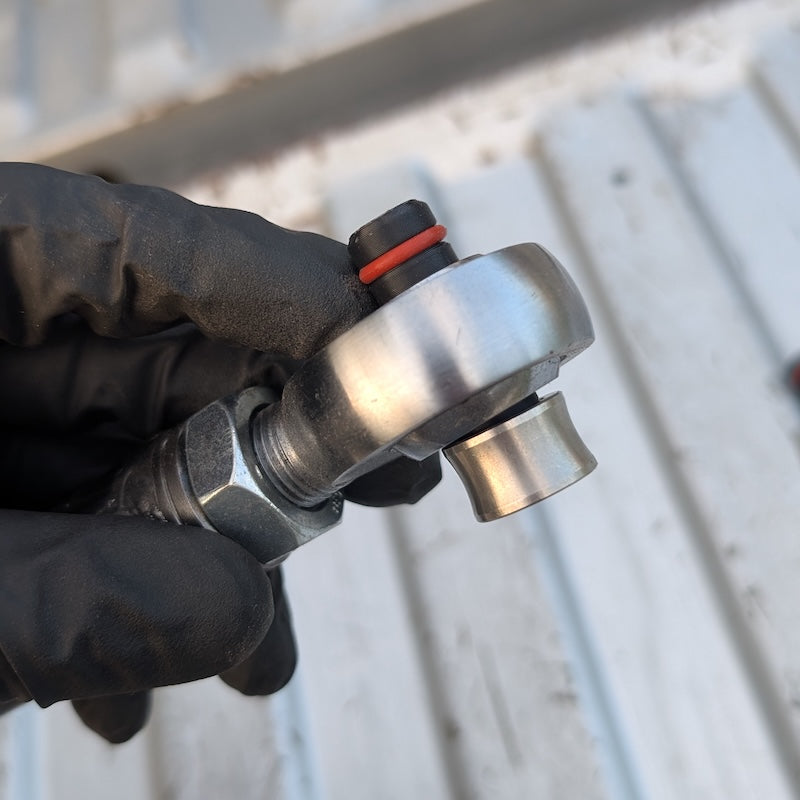

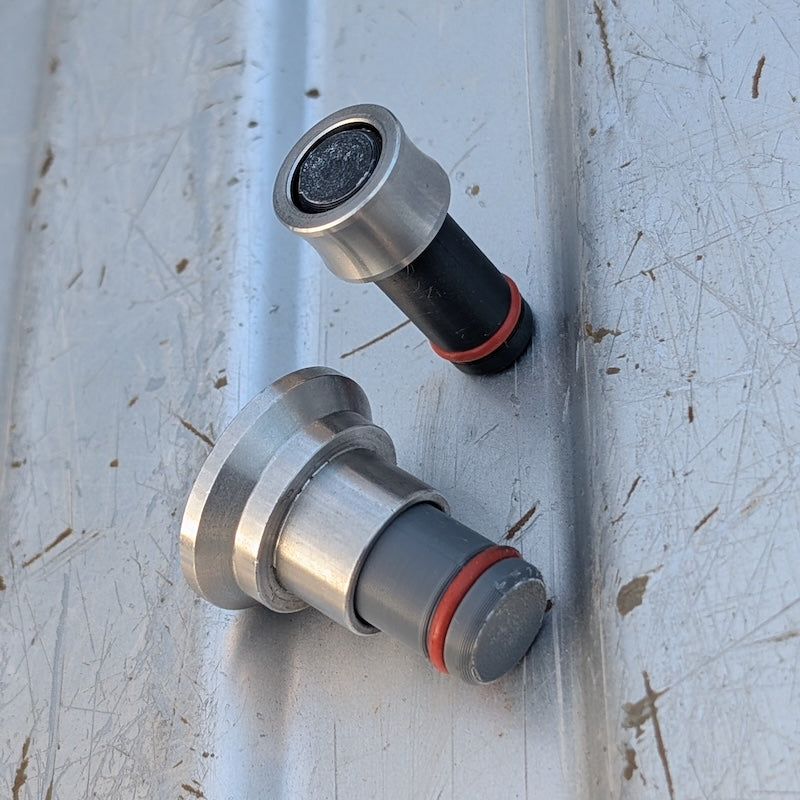

Place the misalignment spacers onto the shock bearing, slide in this tool where the bolt goes and the retention from the o-rings hold everything together as you have both of your hands free to position the shock eyelet into place. Once the shock is aligned, simply grab your bolt and push out the tool as the bolt slides in.

**Color may vary

PHYSICAL PRODUCT VARIANT ONLY

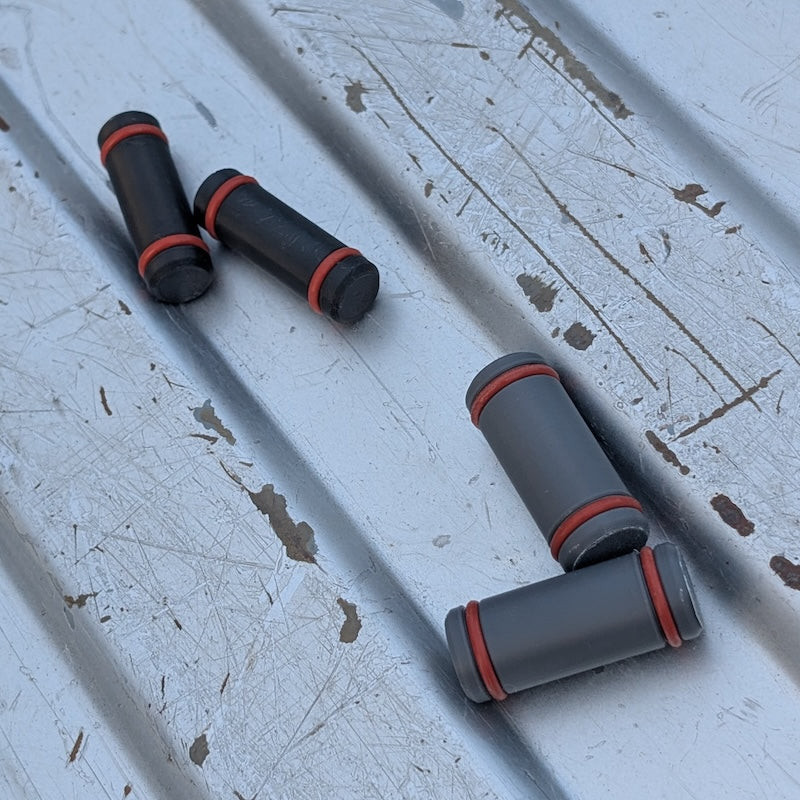

(2) Shock Spacer Tool

SOLD AS A PAIR

PHYSICAL PRODUCT

3D Printed with ASA

*Color May Vary

SOLD AS A PAIR

DIGITAL DOWNLOAD

.STEP File Format. Can be imported into slicer app or opened in CAD software such as Fusion360 and printed yourself.

O-rings ARE required to have this product work as intended. 1/2" Bolt Spacer use 2mm wide 9mm ID and 5/8" Bolt Spacer use 2mm wide 12mm ID. In the physical product variant, we use high-temp silicon o-rings for chemical compatibility and durability. Digital download requires the customer to source o-rings.

*tinkertruck products are focused for the home builder and keeping prices down. This part is 3D Printed. Although we use materials that are tough and able to withstand high heat, this is a plastic tool. It will not last forever and can't be abused like its steel counterpart. For the shade tree mechanic it's a perfect cost effective tool!
